Ball Valves - Flanged Ends

We are Distributor, Dealer, Supplier of Ball Valves - Flanged Ends. Our setup is situated in Pune, Maharashtra, India.


Ball Valves - Flanged Ends



Compact, heavy duty, Two piece body construction, Bi- Directional, Suitable for assured performance, tight shut - off and low torque are auitable to handle highly coorosive liquids & Gasses most suitable to handle highly corrosive liquids & gases. Valves most suitable to provide an ultimate dependable economical flow control.


Test pressure in bar (psi)
Pressure Rating
PNG
PN10
hyd.
Shell
7.5 (109 )
15 (218)
Seat
5 (73)
10 (145)
Air
Seat
5 (73)

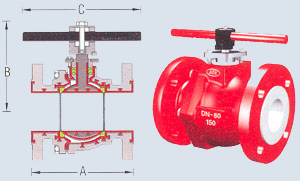

Dimensions are in mm (inch)

 SIZE



B

C

Wt1)

 mm (inch)

816.10

DIN







 15 (1/2)

108 (4.3)

130 (5.1)

95 (3.7)

225 (8.9)

2.8 (6.2)

 20 (3/4)

117 (4.6)

150 (5.9)

100 (3.9)

225 (8.9)

3.5 (7.7)

 25 (1)

127 (5.0)

160 (6.3)

110 (4.3)

225 (8.9)

4.0 (8.8)

 40 (11/2)

165 (6.5)

200 (7.9)

130 (5.1)

325 (12.8)

6.5 (14)

 50 (2)

178 (7.0)

230 (9.1)

140 (5.5)

450 (17.7)

10 (22)

 65 (21/2)

190 (7.5)

290 (11.4)

150 (5.9)

450 (17.7)

12 (26)

 80 (3)

203 (8.0)

310 (12.2)

175 (6.9)

450 (17.7)

17 (37)

 100 (4)

229 (9.0)

350 (13.8)

215 (8.5)

750 (29.5)

27 (59)

 150 (6)

267 (10.5)

480 (18.9)

*

*

45 (99)

 200 (8)

292 (11.5)

600 (23.6)

*

*

105 (232)


Materials
Body & End piece
Ductile Iron ASTM A395 Gr. 60 - 40 - 18/ S.G. Iron EN-1563 No.EN-JS1 024 / Steel: ASTM A216 Gr. WCB Stainless Steel ASTM A351 Gr. CF8/ CF8M
Body & Ball Lining
PFA / FEP
Seat & Stem seal
PTFE
Adaptor & Lever
Steel
Fasteners
Stainless Steel ASTM A276 TYPE 304
