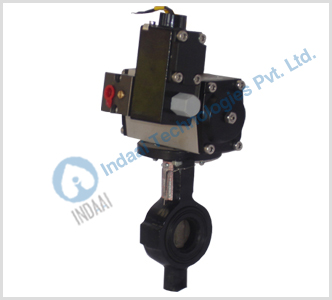

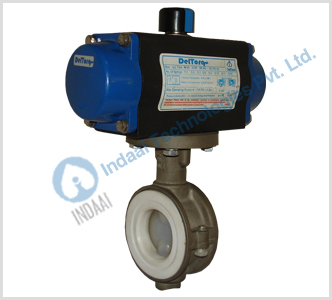

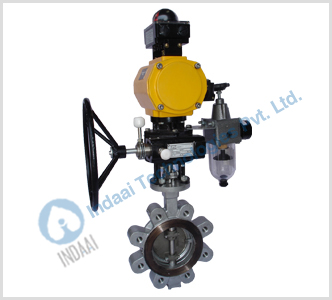

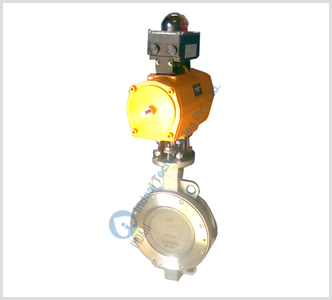

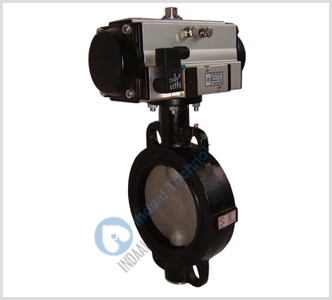

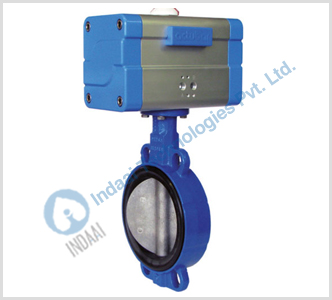

We are Distributor, Dealer, Supplier of Pneumatic Actuated Butterfly Valves, Pneumatic Actuated Valve. Our setup is situated in Pune, Maharashtra, India.
Butterfly Valve |
|
Complies to |
EN-593 / API-609 / AWWA-C504 |
Disc Design |
Centric Disc / Eccentric Disc |
Size |
(a) Centric Design: 32 to 1200mm (b) Eccentric Design: 50 to 1800mm |
Rating |
PN-6, PN-10, PN-16, ASA-150, ASA-300 |
Ends |
Wafer Type / Double Flanged |
MoC |
CI-DI-WCB-CF8-CF8M-CF3-CF3M-LCB-WC1-WC6-CN7M-CD4MCu-HAST-B/HAST-C |
Seat / Disc Seal |
Neoprene, EPDM, Nitrile, Butyl, Hypalon, Viton, Silicon, PTFE |
Speciality |
Fire-Safe, Extended Stem, High Temperature |
Pneumatic Actuator |
|
Power Operator |
Quarter-Turn Pneumatic Actuator |
Type |
Rack & Pinion / Scotch & Yoke / Vane |
Duty |
On-Off / Regulating |
Accessories |
Solenoid Valves, Limit / Proximity Switch Box, Air Filter Regulator, Manual Over-ride, Electro-Pneumatic Positioner, I-P Converter |
