We are Distributor, Dealer, Supplier of Diaphragm Valves - Flanged EndsBall Valves. Our setup is situated in Pune, Maharashtra, India.
weir type, Sraight pattern, glanless, Bi- directional leak tight with rising / non rising hand wheel, clockwise closure. Diaphrgms can be changed without dismantling the valve from the pipeline. valves are suitable to handle highly corrosive liquid, gases 7 slurries etc. Valves most suitable to provide an ultimate dependable flow control.
Test pressure in bar (psi)
|
|||
Pressure Rating
|
PNG |
PN10 |
|
hyd.
|
Shell |
7.5 (109 ) |
15 (218) |
Seat |
5 (73) |
10 (145) |
|
Air |
Seat |
5 (73) |
|

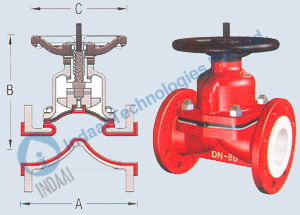

Dimensions are in mm (inch) |
||||||
SIZE |
A |
B |
C |
Wt1) |
||
mm (inch) |
BS |
DIN |
MSS SP-88 |
|
|
|
15 (112) |
114 (4.5) |
130 |
108 |
92 |
70 |
2.5 |
20 (3/4) |
123 (4.8) |
150 |
149 |
100 (3.9) |
70 |
3.0 |
25 (1) |
133 (5.2) |
160 |
149 |
114 (4.5) |
100 (3.9) |
4.0 |
32 (11/4) |
152 (6.0) |
180 |
159 |
115 (4.5) |
100 (3.9) |
5.5 |
40 (11/2) |
165 (6.5) |
200 |
176 |
153 (6.0) |
140 (5.5) |
7.5 |
50 |
196 (7.7) |
230 |
202 |
160 (6.3) |
140 (5.5) |
11 |
65 (21/2) |
222 (8.7) |
290 (11.4) |
226 |
180 (7.1) |
180 (7.1) |
16 |
80 |
260 (10.2) |
310 (12.2) |
264 (10.4) |
233 (9.2) |
225 (8.9) |
23 |
100 |
311 (12.2) |
350 (13.8) |
329 (13.0) |
256 (10.1) |
225 (8.9) |
37 |
125 |
362 (14.3) |
400 (15.7) |
416 (16.4) |
306 (12.0) |
310 (12.2) |
64 |
150 |
412 (16.2) |
480 (18.9) |
416 |
368 (14.5) |
368 (14.5) |
91 |
200 |
527 (20.7) |
600 (23.6) |
530 (20.9) |
479 (18.8) |
471 (18.5) |
165 (364) |
| Materials | |
Body |
Ductile Iron ASTM A395 Gr. 60 - 40 - 18/ S.G. Iron EN-1563 No.EN-JS1 024 / Steel: ASTM A216 Gr. WCB Stainless Steel ASTM A351 Gr. CF8/ CF8M |
Body Lining |
PFA / ETFE / FEP / PP / PVDF |
Bonnet / Compressor |
Cast Iron EN-1561 No.EN-JL 1040 |
Diaphragm |
PTFE |
Backup Pad |
Neoprene / EPDM / Butyl / Viton |
Bushing |
S.G. Iron EN 1563 No.EN-JS1 050 |
Connecting studs / nuts |
Steel ASTM A193 B7 / A194 Gr. 2H |
1) Nett in Kg. (Ibs) approx. (without obligation) 2) Internal diameter of pipe should be atleast 3mm (0.11 ") more than 'd'. * Pressure Rating: PN6 For Sizes 350mm (14") and above: PN5 For Sizes 125mm (5'') and above. * Gear Operation. * Diaphragm Valves Face to Face Dimension (A) as per DIN EN 558-1. * Valves can be supplied to suit ASMEI BS/ DIN Flanges. * For Diaphragm Valves Travel Stop Arrangement can be supplied on request. * Please Specify Working Pressure, Temperature & Service conditions. * Valves can be supplied with auxiliary arrangements like Pad - lock, Chainwheel, Extended stem, Electrical / Pneumatic Actuators etc. * PrimeCoat : Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects. * Additional external coating: Enamel red. * Materials not mentioned above available on request.
