We are Distributor, Dealer, Supplier of Rising Handwheel Flanged End Diaphragm Valves. Our setup is situated in Pune, Maharashtra, India.
Test Pressure in bar (psi) |
|||||||
Pressure rating 2) |
16 |
10 |
7 |
5 |
10 |
7 |
5 |
Hyd. Shell |
24 (348) |
15 (218) |
10.5 (152) |
9 (131) |
15 (218) |
10.5 (152) |
6 (87) |
Seat |
16 (232) |
10 (145) |
7 (102) |
6 (87) |
10 (145) |
7 (102) |
5 (73) |
Air Seat |
5 (73) |
5 (73) |
|||||
| Dimensions are in mm (inch) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Series ' S2K' only |
|

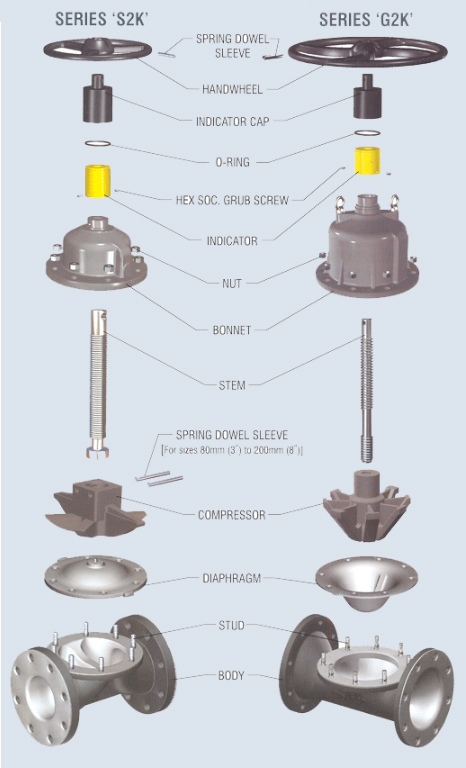

Materials |
|
Body /Bonnet/Compressor |
Cast Iron ASTM A126 Class B / EN-1561 NO.EN-Jl1040 / S Giron EN-1563No.EN-JS1024, Cast Steel ASTM A743 Gr. CC50 / ASTM A216 Gr. WCB / Stainless Steel ASTM A351 Gr. CF8 / CF8M / CN7M |
Body Lining |
Ebonite / Natural/Butyl/Neoprene / EPDM / Nitrile, other Elastomers & even PFA, ETFE, PP etc. |
Diaphragm |
Natural/Butyl/Neoprene / EPDM / Nitrile / Hypalon / Viton / Silicon / PTFE etc. |
Stem |
Steel ASTM A276 TYPE 410 |
Bushing |
S Giron EN-1563 No.EN-JS1050 |
Connecting studs / nuts |
Steel Gr. 4.6/4 |
Handwheel |
Cast Iron ASTM A 126 Class B / EN-1561 NO.EN-JL 1040 |
Surface Protection for Cast Iron and Cast Carbon Steel Valves |
Prime Coat: Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects. Additional external coating: Black Stoving Enamel |
1) Net in Kg. (Ibs) approx. (without obligation) 2) Pressure rating: Series 'S2K' for Sizes 15mm (1/2") to 50mm (2") -16 bar (232 psi), for Sizes 65mm (21/2") to 150mm (6") -10 bar (145 psi), for Size 200mm (8") - 7 bar (102 psi). Series 'G2K' for Sizes 15mm (1/2'') to 100mm (4") -10 bar (145 psi), for Size 125mm (5'') - 7 bar (102 psi), for Sizes 150mm (6") to 300mm (12'') - 5 bar (73 psi). * PFA, ETFE and PP lining available in Series 'S2K' only. * Halar and Nylon coatings also available on request. * Pressure rating for PFA lined Valves consult Weir BDK's sales department. 8 Face to Face Dimension (A) for Size 350mm (14'') as per 'Weir BDK' Standard. * Valves Flanges can be drilled to suit ASME / BS / DIN / JIS. * Please Specify Working Pressure, Temperature & Service conditions. * Valves can be supplied with Pad - lock, Chainwheel, Travel Stop Arrangement, Extended Stem, Electrical 1 Pneumatic Actuators & other accessories like Limit Switch,Solenoid Valve, Air Filtre Regulator, Positioneretc. * Other Materials not mentioned above available on request.
