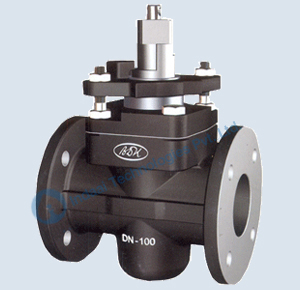

We are Distributor, Dealer, Supplier of Lubricated Plug Valves. Our setup is situated in Pune, Maharashtra, India.
Test Pressure in bar (psi) |
|
Pressure rating |
Class 125 |
Hyd. Shell |
17.5 (254 |
Seat |
12.5 (181) |
Air Seat |
7 (101) |

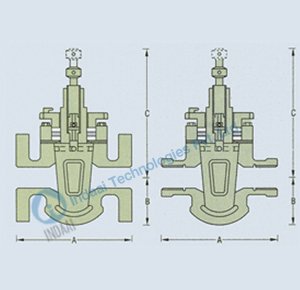

SIZE |
A |
B* |
C* |
WT 1) |
||||||
REGULAR |
SHORT |
REGULAR |
SHORT |
REGULAR |
SHORT |
REGULAR |
SHORT |
|||
mm/inch |
FLANGED |
SCREWED |
SCREWED |
FLANGED |
SCREWED |
FLANGED |
FLANGED |
SCREWED |
||
FLANGED |
FLANGED |
|||||||||
15/0.5 |
130/5.1 |
89/3.5 |
48/1.9 |
162/6.4 |
4/8.8 |
2/4.4 |
||||
20/0.75 |
130/5.1 |
95/3.7 |
48/1.9 |
164/6.5 |
5/11 |
3/6.6 |
||||
25/1.0 |
140/5.5 |
111/4.4 |
50/2.0 |
168/6.6 |
6/13 |
4/8.8 |
||||
32/1.25 |
165/6.5 |
127/5.0 |
60/2.4 |
204/8.0 |
7/15 |
4.5/10 |
||||
40/1.5 |
165/6.5 |
133/5.2 |
64/2.5 |
215/8.5 |
10/22 |
7.5/17 |
||||
50/2.0 |
203/8.0 |
177.8/7.0 |
152/6.0 |
82/3.2 |
71/2.8 |
256/10.1 |
226/8.9 |
16/35 |
14/31 |
10.5/23 |
65/2.5 |
222/8.7 |
190/7.5 |
175/6.9 |
104/4.1 |
95/3.7 |
288/11.3 |
258/10.2 |
24/53 |
20/44 |
16/35 |
80/3.0 |
241/9.5 |
205.5/8.1 |
197/7.8 |
112/4.4 |
102/4.0 |
322/12.7 |
297/11.7 |
27/60 |
26/57 |
23/51 |
100/4.0 |
305/12.0 |
228.6/9.0 |
138/5.4 |
114/4.5 |
344/13.5 |
324/12.8 |
51/112 |
42/93 |
||
125/5.0 |
356/14.0 |
254/10.0 |
164/6.5 |
148/5.8 |
416/16.4 |
406/16.0 |
81/179 |
65/143 |
||
150/6.0 |
394/15.5 |
267/10.5 |
186/7.3 |
180/7.1 |
450/17.7 |
450/17.7 |
100/220 |
84/185 |
||
200/8.0 |
457/18.0 |
292/11.5 |
232/9.1 |
170/6.7 |
524/20.6 |
182/401 |
115/254 |
|||
| Materials | |
Body / Cover / Plug / Stuffing Box / Gland |
Cast Iron ASTM A 126 Class C / EN 1561 NO.EN-JL 1040 / IS:210 Gr. FG 260 |
GASKET |
Asbestos |
Stuffing Box Bolt |
Steel Gr.4.6 |
Packing |
Graphited Asbestos |
Studs / Nuts |
Steel Gr. 4.6 / 5 |
Lubricants |
Dark Brown Grease suitable for industrial applications |
Lubricant bolt |
ASTM A307 Gr.B / Steel Gr. 4.6 |
Surface protection |
Prime coat -Chlorine free with alkyd resin, unobjectionable in physiological & toxicological respects, with additional external coating of machine varnish Black. |
1) Net in Kg. (Ibs) Approx (without obligation) * Screwed end in Regular Pattern available up to sizes 80mm (3'') * 8 Valves are supplied to suitASME B16.1 Class 125 Flanges, other flanges & drilling on request. * Screwed ends to BSP, BSPT or NPT. * Please Specify Working Pressure, Temperature & Service conditions. * Valves can be supplied with Pad - lock, Electric,' Pneumatic or Gear Actuators and other accessories like Limit Switch, Solenoid Valve, Air Filter Regulator etc. * Other materials not mentioned above available on request.
