Plug Valves - Flanged Ends

We are Distributor, Dealer, Supplier of Plug Valves - Flanged Ends. Our setup is situated in Pune, Maharashtra, India.

Plug Valves - Flanged Ends


Indaai Technologies Pvt. Ltd., Motorized Valve, Motorized Valves, Pneumatic Actuated Valve, Pneumatic Actuated Valves, Hydraulic Operated Valve, Hydraulic Operated Valves, Valves Automation Center,

These tight shut - off, Bi - Directional Valves with cavity - free passage, can be used on both pressure and vacuum services. Valves insure long - term reliable operations with simplified in - line maintenance. Valves are suitable to handle highly corrosive liquids & gases etc. Valves most suitable to provide an ultimate dependable economical flow control.


Test pressure in bar (psi)
Pressure Rating
Class 150
PN10
hyd.
Shell
30 (435 )
15 (218)
Seat
22(319)
11 (160)
Air
Seat
6 (87)

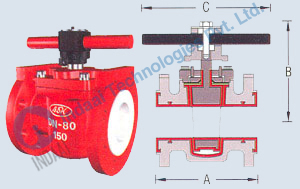

 Dimensions are in mm (inch)

 SIZE

A

B

C

W11)

 mm (inch)

616.10







 15 (1/2)

108 (4.3)

120 (4.7)

325 (12.8)

2.5 (5.5)

 20 (3/4)

117(4.6)

120 (4.7)

325 (12.8)

3.0 (6.6)

 25 (1)

127 (5.0)

125 (4.9)

325 (12.8)

4.0 (8.8)

 40 (11/2)

165 (6.5)

150 (5.9)

450 (17.7)

7.0 (15)

 50 (2)

178 (7.0)

140 (5.5)

450 (17.7)

9.0 (20)

 65 (21/2)

190 (7.5)

165 (6.5)

450 (17.7)

16 (35)

 80 (3)

203 (8.0)

170 (6.7)

750 (29.5)**

18 (40)

 100 (4)

229 (9.0)

225 (8.9)

750 (29.5)**

31 (68)

 150 (6)

267 (10.5)

*

*

60 (132)


Materials
Body & Cover
Ductile Iron ASTM A395 Gr. 60 - 40 - 18/ S.G. Iron EN-1563 No.EN-JS1 024 / Steel: ASTM A216 Gr. WCB Stainless Steel ASTM A351 Gr. CF8/ CF8M
Plug
Stainless Steel ASTM A747 Gr. CB7Cu-1 (17-4PH)
Body & Plug Lining
PFA / FEP
Diaphragm & Wedge Ring
PTFE
Metal Diaphragm
Stainless Steel ASTM A240 TYPE 304
Thrust collar & Fasteners
Stainless Steel ASTM A240 TYPE 304
Adaptor & Lever
Steel

1) Nett in Kg. (Ibs) approx. (without obligation) * Gearoperation. ** Gear operation recommended. • Pressure Rating: PN1 0 For Sizes 150mm (6") and above. • Face to Face Dimension (A) as per ASME B16.10 & DIN EN 558-1 Series 1. •Valves can be supplied to suit ASME/BS/ DIN Flanges. • Please specify Working Pressure, Temperature & Service conditions. • Valves can be supplied with Electric / Pneumatic or Gear Actuators. • PrimeCoat: Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects. • Additional extemal coating: Enamel red. • Other Materials not mentioned above available on request. • Additional extemal coating: Enamel red. • Other Materials not mentioned above available on request.
