PFA Lined Pipe Fittings

We are Distributor, Dealer, Supplier of PFA Lined Pipe Fittings. Our setup is situated in Pune, Maharashtra, India.


align="center" class="text-danger">PFA Lined Pipe Fittings
PFA Lined Pipe Fittings

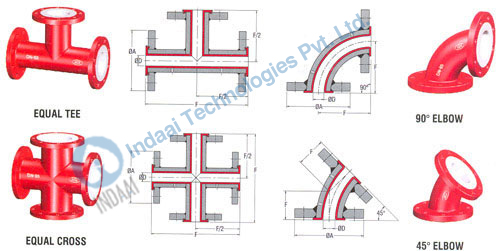

Dimensions are in mm (inch)

Class 150

�SIZE

�A

�D

F

�mm (inch)

�15 (1/2)

89.0 (3.5)

10 (0.4)

130 (5.1)

�20(%)

98.4 (3.9)

15 (0.6)

150 (5.9)

�25 (1)

108.0 (4.3)

20 (0.8)

178 (7.0)

�40 (11/2)

127.0 (5.0)

35 (1.4)

204 (8.0)

�50 (2)

152.4 (6.0)

45 (1.8)

230 (9.1)

�80 (3)

190.5 (7.5)

71 (2.8)

280 (11.0)

�100 (4)

228.6 (9.0)

94 (3.7)

330 (13.0)

�150 (6)

279.4 (11.0)

145 (5.7)

406 (16.0)

Dimensions are in mm (inch)

Class 150

�SIZE

�A

�0

F

�mm (inch)

90�

45�

�25 (1)

108.0 (4.3)

20 (0.8)

89 (3.5)

45 (1.8)

�40 (11/2)

127.0 (5.0)

34 (1.3)

1 02 4.0)

57 (2.2)

�50 (2)

152.4 (6.0)

45 (1.8)

115 (4.5)

63 (2.5)

�80 (3)

190.5 (7.5)

71 (2.8)

140 (5.5)

76 (3.0)

�100 (4)

228.6 (9.0)

94 (3.7)

165 (6.5)

102 (4.0)

�150 (6)

279.4 (11.0)

145 (5.7)

203 (8.0)

127 (5.0)


PFA Lined Pipe Fittings

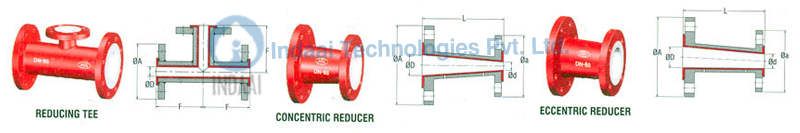

Dimensions are in mm (inch)
�SIZE �mm (inch)
�A
�D
�a
�d
F
L

�40 x 20� (11/2 x 3/4)

127.0 (5.0)

35 (1.4)

98.4 (3.9)

15.0 (0.6)

102 (4.0)

114 (4.4)

40 x 25 (11/2X1)

127.0(5.0)

35 (1.4)

108.0 (4.3)

20.2 (0.8)

102 (4.0)

114 (4.4)

50 x 25� (2 x 1)

152.4 (6.0)

45 (1.8)

108.0 (4.3)

20.2 (0.8)

115 (4.5)

127 (5.0)

50 x 40� (2 x 11/2)

152.4 (6.0)

45 (1.8)

127.0 (5.0)

34.6 (1.4)

115 (4.5)

127 (5.0)

�80 x 25� (3 x 1)

190.5 (7.5)

71 (2.8)

108.0 (4.3)

20.2 (0.8)

140 (5.5)

152 (6.0)

�80 x 40� (3x11/2)

190.5(7.5)

71 (2.8)

127.0 (5.0)

34.6 (1.4)

140 (5.5)

152 (6.0)

�80 x 50� (3 x 2)

190.5 (7.5)

71 (2.8)

152.4 (6.0)

45.5 (1.8)

140 (5.5)

152 (6.0)

�100 x 25� (4x 1)

228.6 (9.0)

94 (3.7)

108.0 (4.3)

20.2 (0.8)

165 (6.5)

178 (7.0)

100 x 40� (4 x 11/2)

228.6 (9.0)

94 (3.7)

127.0 (5.0)

34.6 (1.4)

165 (6.5)

178 (7.0)

�100 x 50� (4x2)

228.6 (9.0)

94 (3.7)

152.4 (6.0)

45.5 (1.8)

165 (6.5)

178 (7.0)

�100 x 80� (4x3)

228.6 (9.0)

94 (3.7)

190.5 (7.5)

71.0 (2.8)

165 (6.5)

178 (7.0)

�150 x 40� (6x 11/2)

279.4 (11.0)
145 (5.7)

127.0 (5.0)

34.6 (1.4)

203 (8.0)

229 (9.0)

�150 x 50� (6 x 2)

279.4 (11.0)
145 (5.7)

152.4 (6.0)

45.5 (1.8)

203 (8.0)

229 (9.0)

�150 x 80� (6 x 3)

279.4 (11.0)
145 (5.7)

190.5 (7.5)

71.0 (2.8)

203 (8.0)

229 (9.0)

�150 x 100� (6 x 4)

279.4 (11.0)
145 (5.7)

228.6 (9.0)

94.2 (3.7)

203 (8.0)

229 (9.0)

�200 x 50� (8 x 2)

342.9 (13.5)
194 (7.6)

152.4 (6.0)

45.0 (1.7)

-

279 (11.0)

�200 x 100� (8 x 4)

342.9 (13.5)
194 (7.6)

228.6 (9.0)

94.0 (3.7)

-

279 (11.0)


Materials
Face To Face
ASME B 16.5 Class 150�
Flange
Carbon Steel ASTM A-105 / ductile Iron ASTM A-536
Shell
Ductile Iron ASTM A- 536
Pipe
Seamless Carbon Steel ASTM A-106, Sch. 40, As per ASME B36 10
Lining
PFA as per ASTM D - 3307 Type-II, FEP As per ASTM D - 2116 Type-III

Indaai Technologies Pvt. Ltd., Motorized Valve, Motorized Valves, Pneumatic Actuated Valve, Pneumatic Actuated Valves, Hydraulic Operated Valve, Hydraulic Operated Valves, Valves Automation Center,

Dimensions are in mm (inch)

Class 150

�SIZE

�A

�D

�E

�H

T

�mm (inch)

�80 x 25� (3 x 1)

190.5 (7.5)

71.0 (2.8)

108.0 (4.3)

20.2 (0.8)

40.1 (1.6)

�80x 40 (3x11/2)

190.5 (7.5)

71.0� (2.8)

127.0 (5.0)

34.6 (1.4)

43.3 (1.7)

�100 x 25� (4 x 1)

228.6� (9.0)

94.2� (3.7)

108.0 (4.3)

20.2 (0.8)

40.1 (1.6)

�100 x 40� (4 x 11/2)

228.6 (9.0)

94.2� (3.7)

127.0 (5.0)

34.6 (1.4)

43.3 (1.7)

�100 x 50� (4 x 2)

228.6� (9.0)

94.2� (3.7)

152.4 (6.0)

45.5 (1.8)

44.8 (1.7)

�150 x 25 (6 x 1)

279.4�(11.0)

144.0(5.7)

108.0 (4.3)

20.2 (0.8)

41.7 (1.6)

�150x 40 (6x11/2)

279.4 (11.0)

144.0� (5.7)

127.0 (5.0)

34.6 (1.4)

44.9 (1.7)

�150 x 50� (6 x 2)

279.4� (11.0)

144.0 (5.7)

152.4 (6.0)

45.5 (1.8)

46.4 (1.8)

�150 x 80� (6 x 3)

279.4� (11.0)

144.0� (5.7)

190.5 (7.5)

71.0 (2.8)

51.2 (2.0)

200 x 50� (8 x 2)

342.9� (13.5)

192.7� (7.6)

152.4 (6.0)

45.5 (1.8)

49.6 (1.9)

�200 x 100� (8 x 4)

342.9� (13.5)

192.7� (7.6)

228.6 (9.0)

94.2 (3.7)

54.4 (2.1)

�250 x 100� (10 x 4)

406.4� (16.0)

244.5 (9.6)

228.6 (9.0)

94.2 (3.7)

56.0 (2.2)

�250 x 150� (10 x 6)

406.4� (16.0)

244.5 (9.6)

279.4 (11.0)

144.0 (5.7)

57.6 (2.3)

�300 x 200� (12 x 8)

482.6 (19.0)

293.3� (11.5)

342.9 (13.5)

192.7 (7.6)

62.3 (2.5)

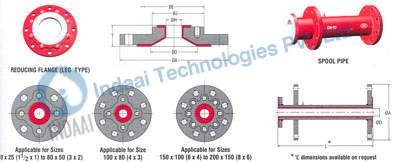

Dimensions are in mm (inch)

Class 150

�SIZE

�A

�B

T

�mm (inch)

�15 (1!2)

88.9 (3.5)

34.9 (1.4)

12.1 (0.4)

20(%)

98.4 (3.9)

42.9 (1.7)

13.7 (0.5)

25 (1)

108.0 (4.3)

50.8 (2.0)

15.3 (0.6)

�40 (11/2)

127.0 (5.0)

73.0 (2.9)

18.5 (0.7)

50 (2)

152.4 (6.0)

92.0 (3.6)

20.0 (0.8)

80 (3)

190.5 (7.5)

127.0 (5.0)

24.8 (0.9)

100 (4)

228.6 (9.0)

157.2 (6.2)

24.8 (0.9)

150 (6)

279.4 (11.0)

215.9 (8.5)

26.4 (1.0)

200 (8)

342.9 (13.5)

269.9(10.6)

29.6 (1.1)

250 (10)

406.4 (16.0)

323.8(12.7)

31.2 (1.2)

�300 (12)

482.6 (19.0)

381.0(15.0)

32.7 (1.3)

Indaai Technologies Pvt. Ltd., Motorized Valve, Motorized Valves, Pneumatic Actuated Valve, Pneumatic Actuated Valves, Hydraulic Operated Valve, Hydraulic Operated Valves, Valves Automation Center,

Dlimensions are in mm (inch)

Class 150

�SIZE

�A

�D

�E

�H

�J

T

�mm (inch)

�Ox 25 (11/2 x 1)

127.0 (5.0)

34.6 (1.4)

108.0 (4.3)

20.2 (0.8)

70 (2.7)

33.8 (1.3)

�50x 25� (2x 1)

152.4 (6.0)

45.5 (1.8)

108.0 (4.3)

20.2 (0.8)

70 (2.7)

35.3 (1.4)

�50 x 40� (2 x 11/2)

152.4 (6.0)

45.5 (1.8)

127.0 (5.0)

34.6 (1.4)

95� (3.7)

38.5 (1.5)

�eo" 50 (3 x 2)

190.5 (7.5)

71.0 (2.8)

152.4 (6.0)

45.5 (1.8)

115 (4.5)

44.8 (1.7)

�POx 80 (4x3)

228.6 (9.0)

94.2 (3.7)

190.5 (7.5)

71.0 (2.8)

150 (5.9)

49.6 (1.9)

�50x100 (6x4)

279.4 (11.0)

144.0 (5.7)

228.6 (9.0)

94.2 (3.7)

195 (7.7)

51.2 (2.0)

�pOx 150 (4 x 6)

342.9 (13.5)

192.7 (7.6)

279.4 (11.0)

144.0 (5.7)

250 (9.8)

56.0 (2.2)



Dimensions are in mm (inch)

Class 150

SIZE

�A

�O

mm (inch)

�15 (1/2)

88.9 (3.5)

10 (0.4)

�20 (3/4)

98.4 (3.9)

15 (0.6)

�25 (1)

108.0 (4.3)

20 (0.8)

�40 (11/2)

127.0 (5.0)

35 (1.4)

�50 (2)

1.52.4 (6.0)

45 (1.8)

�80 (3)

190.5 (7.5)

71 (2.8)

�100 (4)

228.6 (9.0)

94 (3.7)

�150 (6)

279.4 (11.0)

145 (5.7)



Pipe Fittings

Materials
Flange
Carbon ASTM A -105 as per DIN 16 / ASTM AB16.5 ASA#150�
Pipe
Seamless Carbon Steel ASTM A-106, Sch. 40� As per ASME B36 10
Lining
PFA as per ASTM D - 3307 / FEP-TE-9302N (Dupont ) as per ASME D 3307
Teflon Ring
PFA as per ASTM D -1457

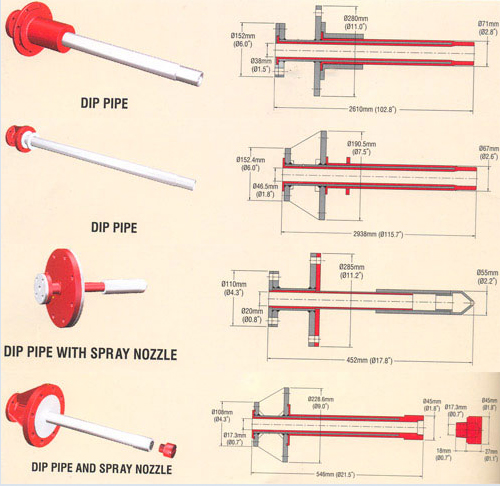

Spray Nozzle
Virgin PTFE
