We are Distributor, Dealer, Supplier of Butterfly Valves Wafer Type. Our setup is situated in Pune, Maharashtra, India.
Heavy duty, wafer & Lugged Type , buuble tight shut- off, Bi- directional, PFA lined / unlined single piecce disc & stem. PTFE stem bearings reulting in self lubrication & Low torque. Valves are suitable to handle highly corrosive liquid, gases, slurries etc. Valves with most advanced features that provide an ultimate dependable ecomomical flow control.
Test pressure in bar (psi)
|
|||
Pressure Rating
|
PNG |
PN10 |
|
hyd. |
Shell |
9 (131 ) |
15 (218) |
- |
Seat |
6.6 (96) |
11 (160) |
Air |
Seat |
4 (58 ) |
6 (87) |

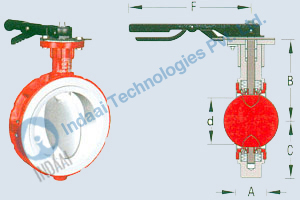

Dimensions are in mm (inch) |
||||||
SIZE |
A |
B |
C |
d 2) |
F |
Wt1) |
mm (inch) |
|
|
|
|
|
|
50 (2) |
43 (1.7) |
100 (3.9) |
63 (2.5) |
32 (1.3) |
300 (11.8) |
3.8 (8.3) |
65 (21/2) |
46 (1.8) |
122 (4.8) |
70 (2.8) |
48 (1.9) |
300 (11.8) |
4.5 (10) |
80 (3) |
46 (1.8) |
133 (5.2) |
77 (3.0) |
64 (2.5) |
300 (11.8) |
5.0 (11) |
100 (4) |
52 (2.0) |
153 (6.0) |
93 (3.7) |
91 (3.6) |
300 (11.8) |
8.0 (18) |
125 (5) |
56 (2.2) |
152 (6.0) |
113 (4.4) |
116(4.6) |
300 (11.8) |
9.0 (20) |
150 (6) |
56 (2.2) |
174 (6.8) |
123 (4.8) |
135 (5.3) |
300 (11.8) |
10 (22) |
200 (8) |
60 (2.4) |
211 (8.3) |
170 (6.7) |
191 (7.5) |
* |
26 (57) |
250 (10) |
67 (2.6) |
230(9.1) |
202 (8.0) |
239 (9.4) |
* |
33 (73) |
300 (12) |
78 (3.1) |
308 (12.1) |
228 (9.0) |
290 (11.4) |
* |
60 (132) |
350 (14) |
78 (3.1) |
320 (12.6) |
275 (10.8) |
332 (13.4) |
* |
90 (198) |
400 (16) |
102 (4.0) |
350 (13.8) |
316 (12.4) |
378 (14.9) |
* |
102 (225) |
450 (18) |
114 (4.5) |
380 (15.0) |
330 (13.0) |
425 (16.7) |
* |
119 (262) |
500 (20) |
127 (5.0) |
415 (16.3) |
375 (14.8) |
485 (19.1) |
* |
155 (342) |
600 (24) |
154 (6.1) |
500 (19.7) |
440 (17.3) |
570 (22.4) |
* |
252 (556) |
Materials |
|
Body (spilt) |
Steel : ASTM A216 Gr. WCB / Stainless steel ASTM A351 Gr. CF8 / CF8M |
Disc / Disc lining |
Stainless steel ASTM A747 Gr. CB7Cu-1 (17 - 4Ph ) / Pfa, FEP |
Disc (integral stem) |
Unlined ASTM A351 Gr. CF8M / CN7M / ASTM A494 HAST- B / HAST- C |
Seat |
PTFE |
Seat back up |
EPDM / Silicon / Voton |
Handle Unit |
Steel : ASTM a216 Gr. WCB |
