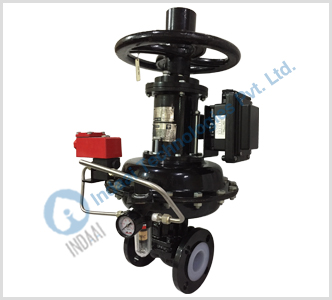

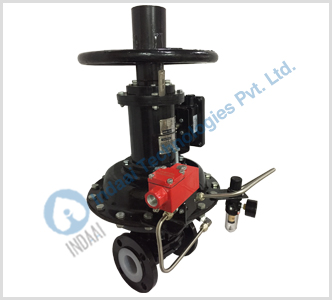

Pneumatic Actuated Diaphragm Valves

We are Distributor, Dealer, Supplier of Pneumatic Actuated Diaphragm Valves. Our setup is situated in Pune, Maharashtra, India.


Indaai Technologies Pvt. Ltd., Motorized Valve, Motorized Valves, Pneumatic Actuated Valve, Pneumatic Actuated Valves, Hydraulic Operated Valve, Hydraulic Operated Valves, Valves Automation Center,
Indaai Technologies Pvt. Ltd., Motorized Valve, Motorized Valves, Pneumatic Actuated Valve, Pneumatic Actuated Valves, Hydraulic Operated Valve, Hydraulic Operated Valves, Valves Automation Center,
Indaai Technologies Pvt. Ltd., Motorized Valve, Motorized Valves, Pneumatic Actuated Valve, Pneumatic Actuated Valves, Hydraulic Operated Valve, Hydraulic Operated Valves, Valves Automation Center,


Diaphragm Valve
Complies to
BS EN-13397
Construction
Weir Type / Straight-Through Type
Size
15 to 350 mm
Rating
16, 10, 7, 5 (Depends in Size)
Ends
Flanged / Screwed
MoC
CI-DI-WCB-CF8-CF8M-CF3-CF3M-CN7M-CD4MCu-HAST-B/HAST-C
Body Rubber Lining
Neoprene, EPDM, Nitrile, Butyl, Hypalon, Viton, Silicon, PTFE / PFA
Rubber Diaphragm
Neoprene, EPDM, Nitrile, Butyl, Hypalon, Viton, Silicon, PTFE
Speciality
Pad-Lock, Travel Stop, Chain-wheel, Extended Stem


Pneumatic Actuator
Power Operator
Diaphragm type Linear Pneumatic Actuator
Type
Direct Acting (Air to Close, Fail to Open) / Reverse Acting (Air to Open, Fail to Close) / Double Acting (Air to Open & Close, Fail As Is)
Duty
On-Off / Regulating
Accessories
Solenoid Valves, Limit / Proximity Switch Box, Air Filter Regulator, Manual Over-ride, Electro-Pneumatic Positioner, I-P Converter
