High Performance Valve Actuator

We are Distributor, Dealer, Supplier of High Performance Valve Actuator, Portable Valve Actuator, Engine Operated Actuators. Our setup is situated in Pune, Maharashtra, India.

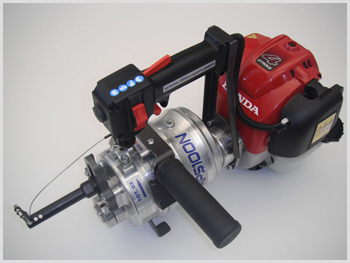

The top of the range is represented by the model APS140N, a high-performance portable engine-operated actuator that can handle, even under heavy conditions, average and big size sluice gates. With a max torque of 147 Nm achieved via an engine Honda GX35 4T, this actuation system is the final solution to all those problems related to sluice gates that cannot be electrically fed, and therefore represents a true alternative to electrical actuation systems.



Technical data
.
Max torque
147 Nm
Continuous torque
96 Nm
Output
rpm 110
Engine
rpm 8500
Reduction ratio
77/1
Engine power
1,0 kW (1.0 HP)
Tank capacity
0,63 litres
Consumption
0,71 l/h
Dimensions
526x250x313(h) mm
Weight
13 Kg
Bushing etching
Q24x24x5(h) mm
